Creality CR-5 Pro H 3D Printer - High-temp Version
Superior 3D printing results at an entry-level price
The Creatlity CR-5 Pro H features the same attractive design, solid construction, and generous build volume of the CR-5 Pro, but this high-temperature model can do much more. With a maximum nozzle temperature of 300℃, the CR-5 Pro H 3D printer supports advanced filament materials that require higher temperatures. The CR-5 Pro H's fully enclosed build chamber, auto-leveling, and carbon crystal silica glass build platform ensure a properly calibrated, stable environment for 3D printing, for consistently excellent results.
CR-5 Pro H Features:
- High-temperature Model - CR-5 Pro H's maximum nozzle temperature increased from 260°C to 300°C
- Large build volume - CR-5 Pro H prints models up to 300 x 225 x 380mm
- Fully-enclosed build chamber - helps maintain temperature stability for best results
- BLTouch automatic leveling - CR-5 Pro H's automatic leveling is fast and accurate, ensuring proper calibration

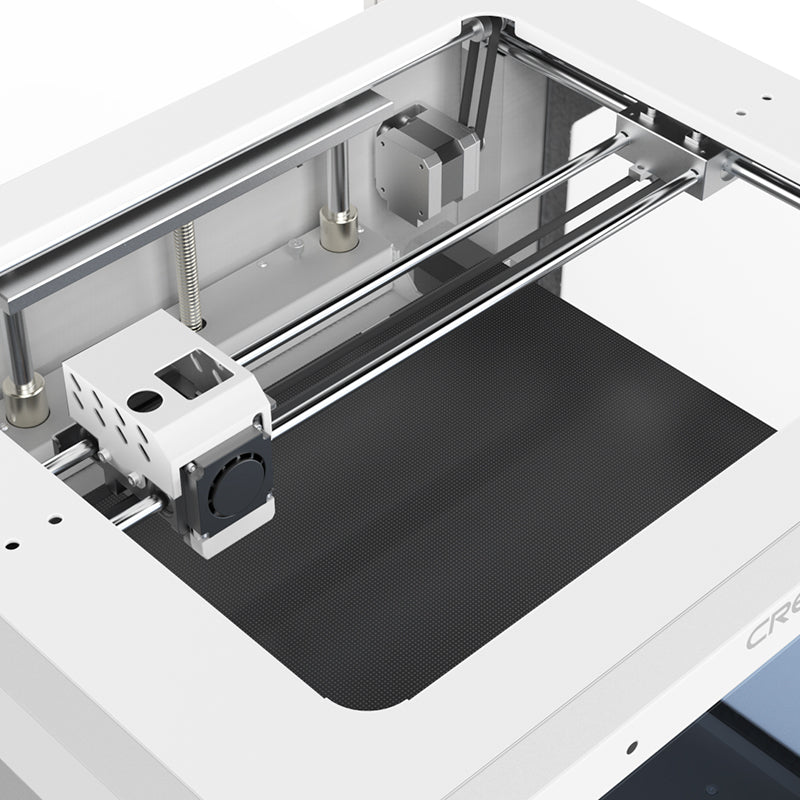

- Carbon crystal silica glass print platform - CR-5 Pro H's glass build surface is extremely flat and heats quickly, providing strong model adhesion, less chance of models lifting or warping, and easy model removal when the print completes
- Filament run-out detector - prevents wasted time and material if filament runs out before the 3D printing project is complete
- Resume printing - in the event of a power outage, CR-5 Pro H gives users the option to resume printing after power is restored

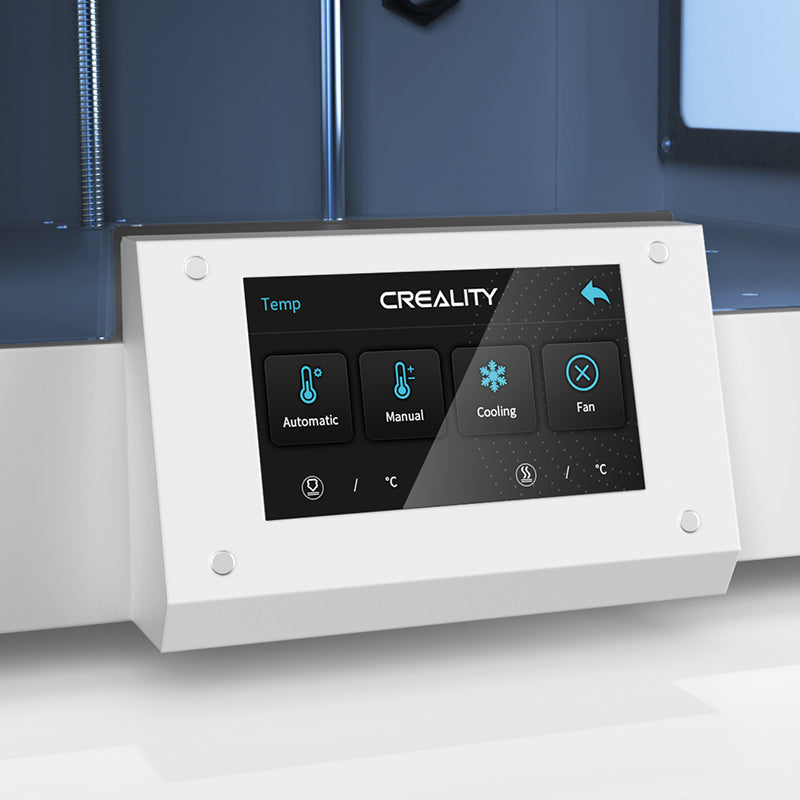

- User-friendly touchscreen interface - Creality's 4.3" touchscreen interface is easy to ready and simple to operate
- Quiet operation - CR-5 Pro H's smooth, low-noise 3D printing won't disturb those working or studying around it
- Attractive design with solid construction - With its full-metal frame and blue transparent door, frosted side panels, and top cover, the CR 5 Pro H is rugged enough for industrial applications, but won't look out of place in an office or classroom
It's easy to start printing with the CR-5 Pro H - check out the setup video below
Creality CR-5 Pro H Specifications:
- 3D printing technology: FDM(Fused Deposition Modeling)
- Print volume: 300 x 225 x 380mm (11.8" x 8.5" x 14.9")
- Printing accuracy: ±0.1mm
- Nozzle diameter: 0.4mm(standard)
- Hotbed temperature: ≤110°C
- Onboard interface: 4.3-inch touch screen
- Nozzle temperature: ≤300°C
- Layer thickness: 0.1-0.3mm
- Slicer software: Cura/Repetier-Host/Simplify3D/Creality slicer
- File format: STL/OBJ/AMF
- Power supply: AC 115/230V/DC 24V
- Filament diameter: 1.75mm
- Printer dimensions: 530 x 487 x 612mm (20.9" x 19.2" x 24.1")
- Printer weight: 32.5KG (72 lbs)
- Shipping dimensions: 625 x 545 x 780mm (24.6" x 21.5" x 30.7")
- Shipping weight: 40KG (89 lbs)
We Also Recommend
QUESTIONS & ANSWERS
Ask a Question-
What is the actual dimension from front to back INCLUDING spool holder? I see 19.2" might be the D dimension without filament spool.
Spool holder a filament reel add about 4 inches to the Depth. Appox. 23.5" Deep
-
Does this printer have Hepa filtration?
No, the Creality CR-5 Pro H 3D Printer does not feature HEPA filtration.
-
What is the working temperature of the chamber?
Hello,
The Creality CR-5 Pro H does not have an actively heated chamber. -
Does it have settings for Taulman Bridge nylon and poly carbonate?
Hello,
The CR-5 Pro H maxes out at 300 degrees celsius. The temperature range for poly carbonate is 250-320 degrees celsius. Taulman Bridge Nylon requires a temperature of 245 degrees celsius.
The manufacurer only supports using material up to 300 degrees celsius. Hope this helps. -
What third party materials can this machine use?
Hello,
The CR5 H Pro will accept any 3rd party 1.75 mm ABS or PLA filament used within the manufactures temperature range below 300 C. Avoid using inexpensive filament. -
How well does it work for abs?
Hello,
The fully enclosed build chamber on the CR-5 Pro H helps maintain the consistent temperature required when using high temperature ABS material with a diameter of 1.75. and makes it a good choice when using ABS.
